In the field of downlight/panel light LED driver, Lifud has been producing a number of explosive products for the industry and market with technological innovation and excellent quality. Recently, Lifud downlight & panel light LED driver family once again ushered in a series of exciting new products. These new products not only achieve some functional breakthroughs through patented technology, but also carry out deep optimization in performance parameters, showing Lifud’s ultimate pursuit of details!

Ⅰ. ON/OFF Non-dimmable New Products

1. GIF-YS: the best-selling in accord with European standard, 20W performance upgrade!

LF-GIFxxxYS series is the most popular flicker-free ON/OFF downlight/panel light LED driver in accord with European standard. The new 20W GIF020YS model has 2kV high protection (common indoor LED driver protection is 1kV). Moreover, the current is adjustable via DIP switch, more convenient for stock and application!

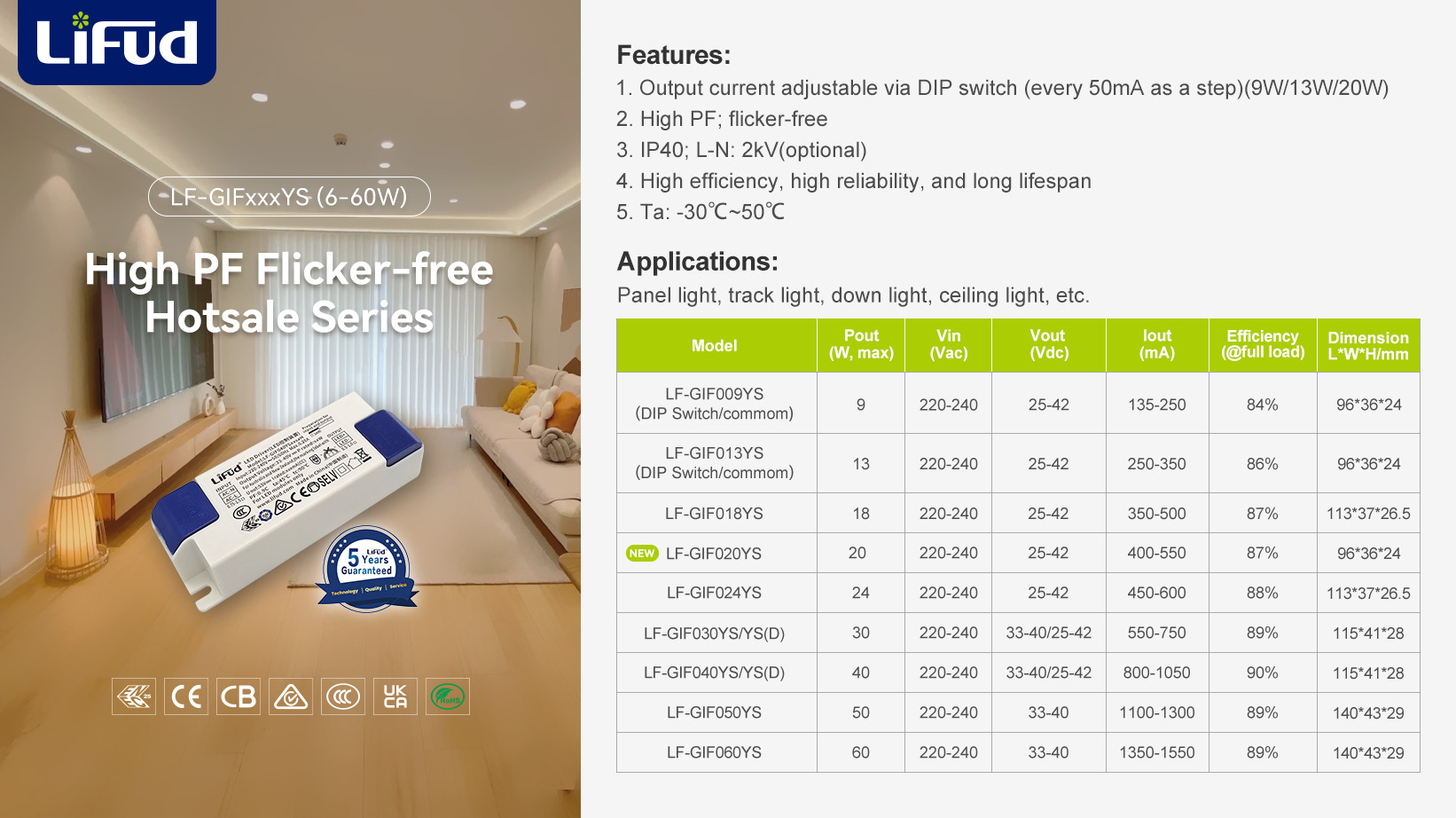

▼LF-GIFxxxYS details

2. GIF-CS: patented design, color temperature adjustable via DIP switch (4 shifts)!

LF-GIFxxxCS is a new listed series. Through patented design, it features 4 color temperature switches, which can offer 4 distinct color temperature variations for the whole lamp based on the lamp bead design. This enables the same lamp to be utilized in projects with different color temperature requirements, thereby reducing the lamp SKU!

▼LF-GIFxxxCS details

Ⅱ. DALI New Dimmable Product

1. BDD: all-around top, Pro version with a higher temperature tolerance and more reliable!

LF-BDDxxx series is the all-around top of Lifud DALI. This series is not only fully functional, but also features outstanding parameters like 2KV high protection, high PF, and ultra-quiet operation. The LF-BDD040 Pro version on the market this time further improves the 40W temperature tolerance range by semi-filling glue, so that when it is used in the downlight built-in application, there is no need to worry about the ambient temperature of the lamp chamber!

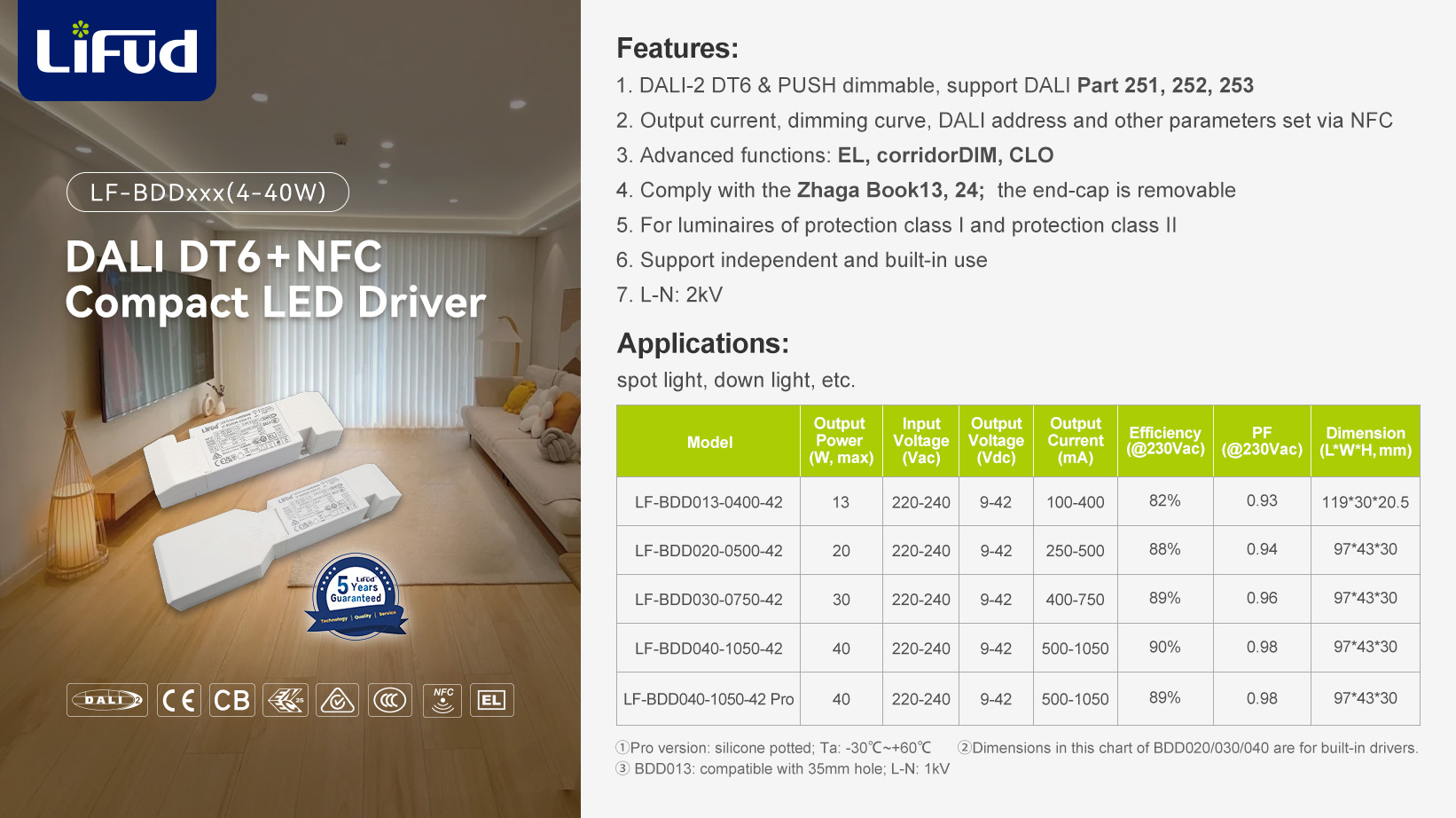

▼LF-BDDxxx details

The series offers DALI dimmable function to make the lighting control more flexible and precise. These products not only support DALI dimming, but also have advanced features such as corridor lighting, CLO light attenuation compensation and EL emergency function to meet high-end lighting needs.

2. ADD: multi-function explosion in popularity, new 60W power data feedback!

LF-ADDxxx series, as the best-selling Lifud DALI dimmable product, has a variety of advanced features such as corridor lighting, CLO light attenuation compensation and EL emergency function. The newly added 60W model also adds data feedback DALI Part 251, 252, 253 functions to make lighting project management easier!

▼LF-ADDxxx details

Ⅲ. New Wireless Dimmable Product

The LF-ACBxxx series is Lifud wireless CASAMBI dimmable product, which not only has 0.1% dimming depth and large terminal connection design, but also meets ZHAGA standards to help circular economy. The new 13W model achieves 4-40W power coverage, which can support the development of a full range of Casambi wireless dimmable products from downlights to panel lights by lighting manufacturers! It provides unlimited possibilities for modern smart home and commercial space.

▼LF-ACBxxx details

Ⅳ. Lifud Downlight & Panel Light LED Driver

Everything you want is in Lifud! The Lifud downlight/panel light LED driver family features intelligent DALI, 0-10V, thyristor, wireless dimming & dimming and color adjustment, and ON/OFF non-dimming. Diverse in appearance and function!

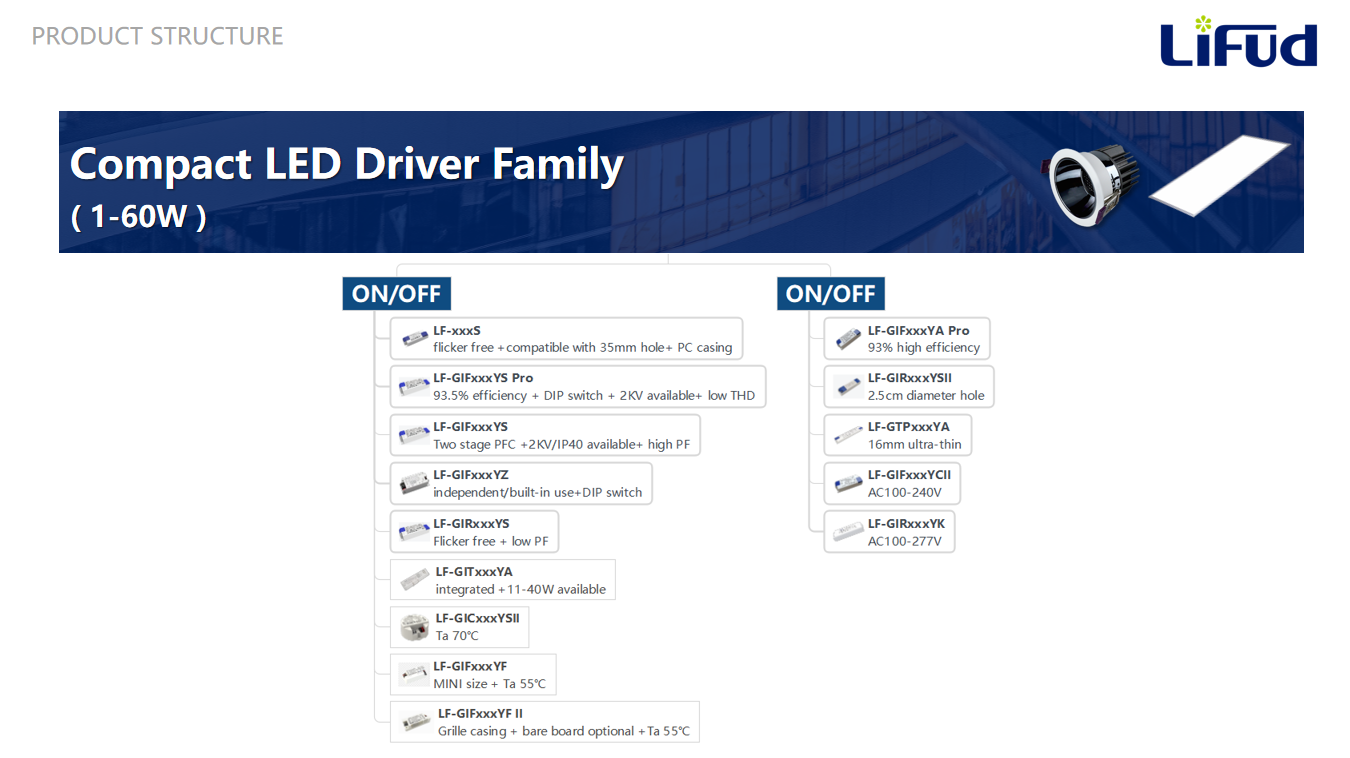

▼ Downlight/panel light LED driver intelligent product line

▼ Downlight/panel light LED driver ON/OFF product line

Need driver, choose Lifud

Lifud has always viewed "technological innovation, improving the human living environment and enhancing the quality of life" as its mission, with technology, quality and service being the core values of its brand, offering high-quality LED driver solutions to the market and global customers.

For more product details, please contact your dedicated engineer or call the service hotline 400-096-6815.
