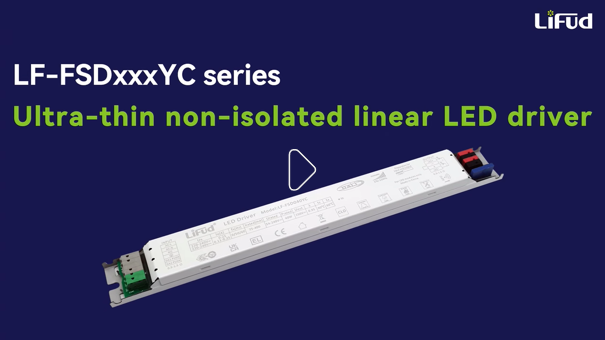

LF-FSDxxxYC Non-isolated DALI DT6 + NFC Dimmable LED Driver
-
Model
LF-FSDxxxYC
Parameters
Operating voltage: 220-240Vac; 180-264Vdc
Output power: 40-60W
Operating Voltage Limit: 198-264Vac
Features
1. DALI DT6 & PUSH dimmable, ultra-thin height 16mm
2. Support DALI Part 251, 252, 253
3. Terminal blocks: 0° push terminals
4. Output current, dimming curve, DALI address and other parameters set via FEIG NFC or Lifud NFC app
5. Advanced functions: EL, corridor DIM, CLO
6. Comply with ZHAGA book 13, 24
7. Dim to off without afterglow; surge: PUSH: 1kV
8. For luminaires of protection class I
Warranty
5 years
Certifications
ENEC, CE, CB, RCM, SAA, UKCA
Applications
Indoor office lighting, hospitality lighting, residential lighting, corridor lighting, decorative lighting, commercial lighting
Keywords:
Category:
Products
Linear drivers
- Parameter
- Parameter
- Order Information
- Data-sheet
- Certificate
-
Model
LF-FSDxxxYC
Parameters
Operating voltage: 220-240Vac; 180-264Vdc
Output power: 40-60W
Operating Voltage Limit: 198-264Vac
Features
1. DALI DT6 & PUSH dimmable, ultra-thin height 16mm
2. Support DALI Part 251, 252, 253
3. Terminal blocks: 0° push terminals
4. Output current, dimming curve, DALI address and other parameters set via FEIG NFC or Lifud NFC app
5. Advanced functions: EL, corridor DIM, CLO
6. Comply with ZHAGA book 13, 24
7. Dim to off without afterglow; surge: PUSH: 1kV
8. For luminaires of protection class I
Warranty
5 years
Certifications
ENEC, CE, CB, RCM, SAA, UKCA
Applications
Indoor office lighting, hospitality lighting, residential lighting, corridor lighting, decorative lighting, commercial lighting
-
Model Output Power Input Voltage Output Voltage Output Current Efficiency
(full load)PF (full load) Dimension (L*W*H) LF-FSD040YC 40 W 220-240 Vac 54-240 Vdc 75-400 mA 90% (230Vac) 0.95 (230Vac) 280*30*16 mm LF-FSD060YC 60 W 220-240 Vac 54-240 Vdc 120-550 mA 93% (230Vac) 0.95 (230Vac) 280*30*16 mm -
Model Quantity Weight Packaging Dimension (L*W*H) LF-FSD040YC 50 pcs/ctn 11.3 kg/ctn 310*285*155 mm LF-FSD060YC 50 pcs/ctn 11.3 kg/ctn 310*285*155 mm
